Fully Automatic Filter Press
The fully automatic filter press executes the complete filtration cycle autonomously. The system’s integrated program performs every step, from plate closing and feeding to cake discharge and optional cloth washing. A key feature is that it automatically re-initiates the plate closing sequence to begin the next batch without pause. This equipment enables true, continuous unmanned operation, removing the need for manual intervention between cycles.
This system processes large volumes of slurry with good dewatering characteristics and predictable cake release particularly well. In applications such as mineral concentrates, certain chemical precipitates, or stabilized municipal sludge—where material consistency allows—the fully automatic filter press achieves unparalleled efficiency. It operates continuously, maximizing throughput while drastically reducing labor costs and operational variability. The filter press delivers exceptional value in streamlined processes where automation can be fully leveraged for consistent, high-frequency production.
Core Advantages
- Enables stable, unmanned production with auto plate pulling and cake discharge, lowering operating costs.
- Delivers batch-to-batch consistency through locked-in, programmable process parameters.
- Maximizes throughput with automated cycling for high-frequency processing.
- Offers optional automatic squeeze and air blow functions for ultimate cake dryness.
- Features integrated smart controls for real-time monitoring and alerts.
Design Features
- PLC-Controlled Cycle Execution
A central PLC governs the complete filtration cycle, accurately controlling the hydraulic system, pumps and valves to automate plate closing, shifting and opening. This forms the intelligent core for stable, unattended operation.
- Integrated Process Monitoring & Control
Multiple sensors for pressure, plate position and flow deliver real-time data to the PLC and HMI. This enables remote monitoring, data logging, performance analysis and precise process adjustment.
- Automated Cake Discharge Assistance
Automatic plate shifters work with frame-mounted vibrators or optional cloth-curling systems. Vibration and cloth flexing actively detach filter cake, ensuring reliable, consistent discharge.
- Automated Cloth Washing System
A high-pressure spray bar assembly moves across the plate stack at set intervals. It automatically cleans the filter cloth to remove solids, maintain permeability and sustain long-term filtration efficiency.

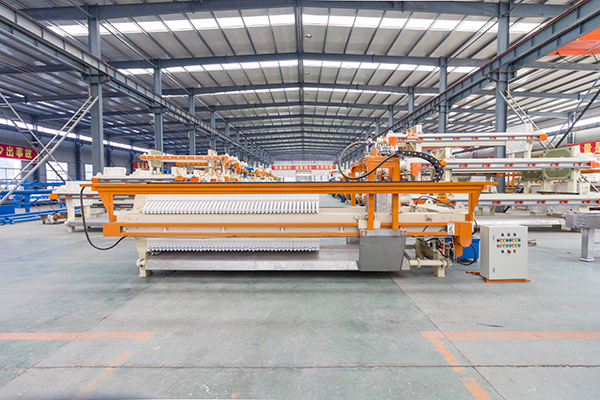

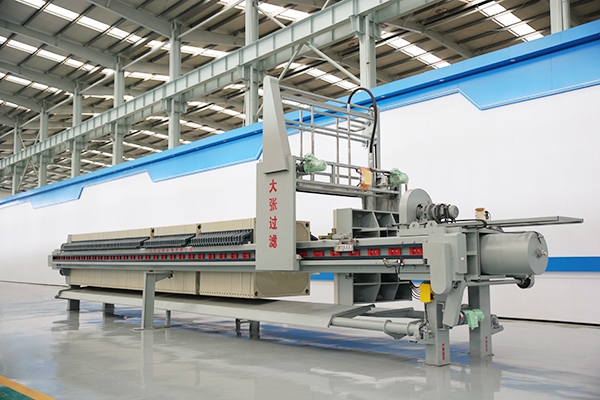

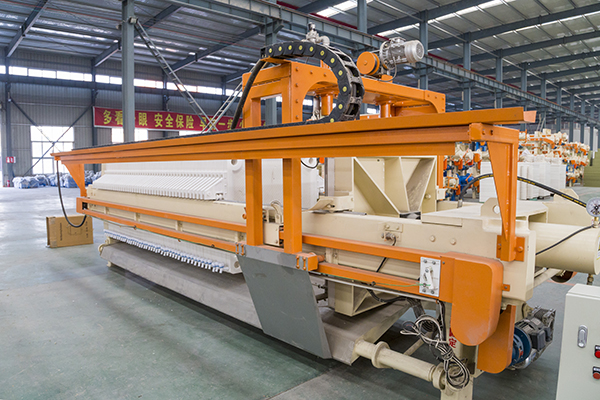

Fully Automatic Filter Press Images
