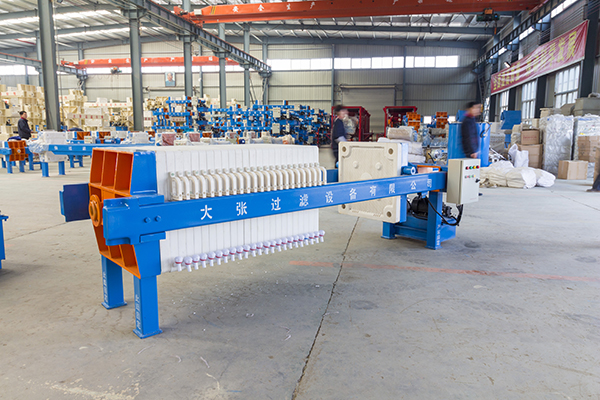

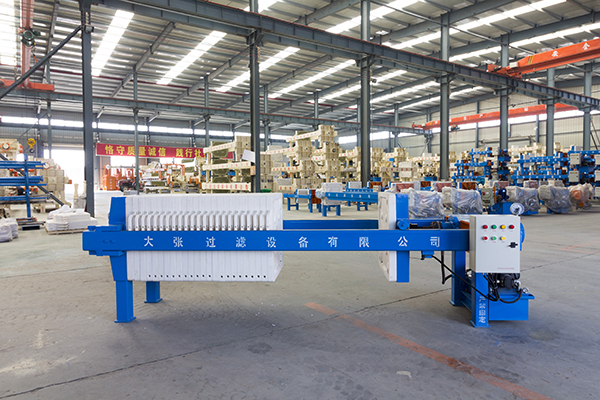

Pilot Filter Press

The pilot filter press is an intermediate-scale system designed for process validation and pre-production batch testing. It typically utilizes a manual or mechanical jack closure system to secure the filter plate pack. This operation provides direct control and clear feedback during the filtration cycle. The unit processes larger batches than laboratory equipment, generating representative industrial data. This system is a critical step in scaling new processes from lab to plant.

Its primary application is in pilot plants and R&D centers for final-stage process optimization. The pilot filter press is used to confirm filter media selection, refine cycle parameters, and produce qualification batches. It provides engineers with practical insights into cake handling, washing efficiency, and production reliability. The system delivers the conclusive performance data required to specify the final, full-scale industrial filter press with confidence.

Core Advantages

- An intermediate scale accurately bridges laboratory tests and full-scale production requirements.
- Manual or jack closure enables direct operator control and process feel during trials.
- The system generates definitive, representative batch data for confident scale-up decisions.
- Robust and simplified mechanics ensure high reliability for continuous pilot campaigns.
- It delivers the practical insights needed to specify the final production-scale filter press.

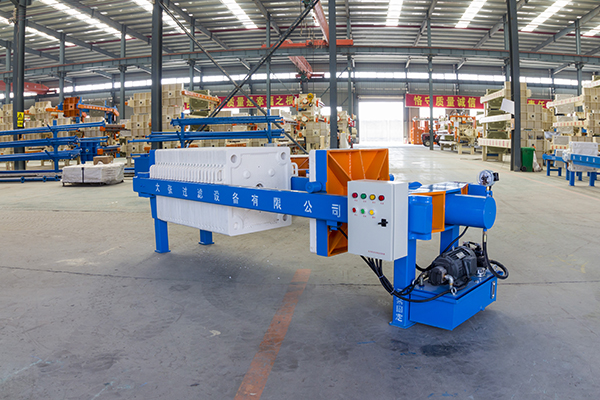

Pilot Filter Press | DaZhang Filtrantion

Design Features

Scaled Process Chambers: The filter plate area and chamber volume are carefully sized to handle industrially relevant batch sizes. This intermediate scale produces meaningful process data while remaining operable within pilot plant facilities, effectively de-risking the final scale-up.
Mechanical Closure System: A manual hand-wheel or mechanical jack provides the force to close and seal the plate pack. This simple, direct mechanism allows operators to adjust and sense the clamping pressure intuitively, which is critical for process understanding and parameter optimization.
Duty-Rated Frame & Components: The press is built with a heavy-duty frame, sturdy plates, and robust fluid manifolds to withstand repeated cycles. This focus on fundamental mechanical durability over complexity maximizes operational availability during extended pilot runs and recipe testing.
Service-Friendly Layout: Components are arranged to prioritize clear access to all key functional areas and components. This layout supports straightforward operation, visual inspection, and simplified maintenance procedures essential for the ongoing reliability of the press.
