Plate and Frame Filter Press
The plate and frame filter press represents the original and highly modular design in filter press technology. It consists of alternating solid filter plates and hollow frames assembled in sequence. When clamped under pressure, each plate-frame assembly forms a sealed, independent filtration chamber. Slurry is pumped into these hollow frames; solids are captured by filter cloth covering the plates, while clear filtrate flows through discharge channels in the plate body.
This structure delivers outstanding flexibility for diverse operating scenarios. The total filtration area and cake capacity can be easily adjusted by adding or removing plates and frames. Its open structure supports direct process observation and convenient manual cake discharge. Simple in structure, strong in adaptability and easy to maintain, the plate and frame filter press is widely preferred for small-batch production, pilot tests and applications with frequent material changes.
Core Advantages
- Highly modular design enables fast and flexible capacity adjustment.
- Open structure allows visual monitoring and easy manual operation.
- Easy access simplifies maintenance and filter cloth replacement.
- Cost-effective solution for small-batch and multi-product applications.
- Simple mechanical structure ensures easy operation and control.
Design Features
- Plate & Frame Construction
Solid filter plates and hollow frames are arranged alternately to form individual filtration chambers. This structure ensures even cake formation in each chamber and allows simple, manual cake removal after filtration.
- Filter Cloth Draping & Fixing
Each filter plate is fully covered by a single layer of filter cloth, secured around the plate edges. This simple fixing method allows fast cloth replacement and thorough cleaning, especially during material switches.
- Adjustable Chamber Thickness
The thickness of the hollow frame directly determines chamber depth and final cake volume. By using different frame thicknesses on the same unit, cake capacity can be flexibly matched to various material characteristics.
- Independent Chamber Access
Each frame constitutes a separate and fully accessible filtration unit. This allows individual inspection, targeted cleaning and residue-free discharge, effectively avoiding cross-contamination between batches.

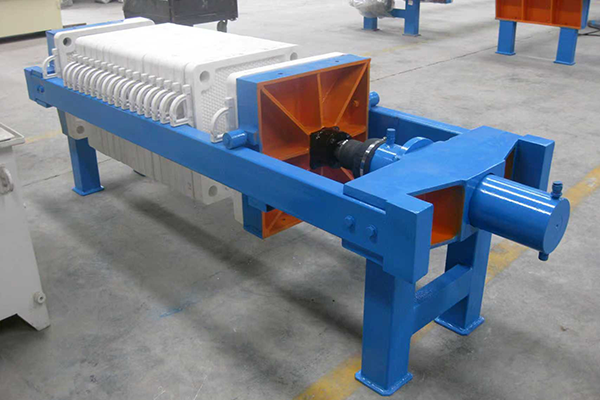

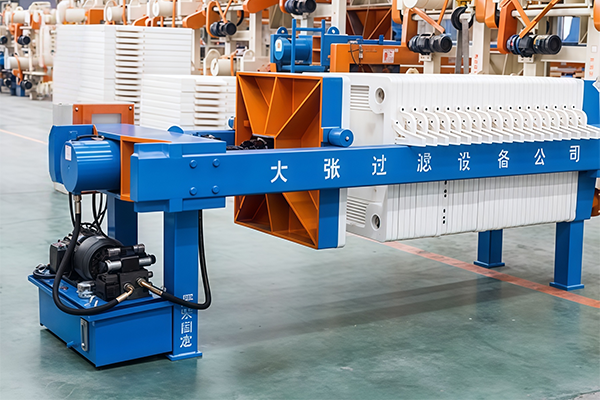

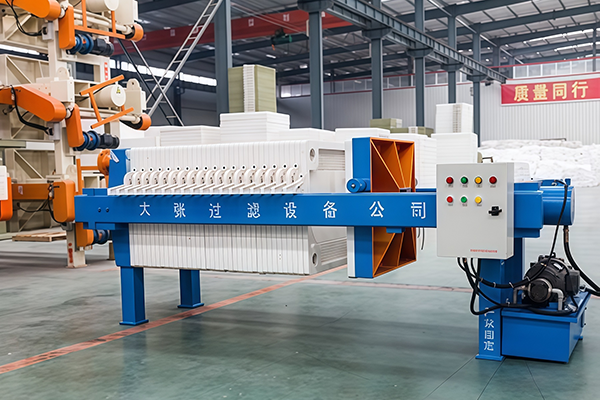

Plate and Frame Filter Press Images
