Recessed Chamber Filter Press
The recessed chamber filter press is the fundamental and most widely used design for solid-liquid separation. It utilizes filter plates with a depressed, chambered surface on each side. When the plate pack is closed under hydraulic pressure, these recesses align to form a series of enclosed filter chambers. The slurry is pumped into these chambers under pressure; solids are retained on the filter cloth lining each chamber, while the liquid filtrate passes through and is collected.
This design offers a robust, versatile solution for a broad spectrum of dewatering applications. Its large chamber volume allows for processing significant solid loads per cycle, making it suitable for high-volume operations. The simple mechanical structure ensures stable operation and easy maintenance. The recessed chamber filter press is widely applied in mining, chemicals, municipal wastewater treatment and other industries requiring consistent solid-liquid separation.
Core Advantages
- Provides a simple and reliable mechanical filtration principle.
- Offers large chamber volume for high solid capacity per cycle.
- Features robust construction for demanding industrial environments.
- Ensures wide applicability across diverse materials and industries.
- Allows easy maintenance and convenient part replacement.
Design Features
- Recessed Chamber Plate Design
The core component is the filter plate with a centrally depressed, reinforced chamber on each face. This design forms a deep enclosed filtration space when closed, maximizing cake storage per plate.
- Filter Cloth Adaptability
The open chamber design supports wide compatibility with various filter cloths. Installation and replacement are efficient, reducing downtime and ensuring continuous operation.
- Uniform Feed Distribution
Slurry enters through a centralized feed port at the corner or center of the plates. An internal channel network distributes slurry evenly across the chamber, promoting uniform cake formation.
- Heavy-Duty Plate Construction
Plates feature a thick, solid cross-section forming the recessed chamber. This structure delivers high strength and rigidity to withstand filtration pressure and maintain long-term stability.

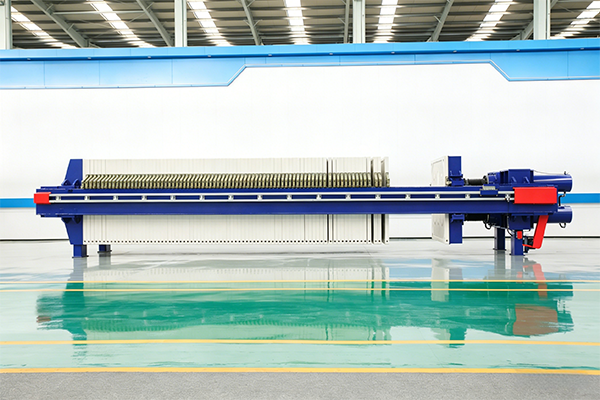

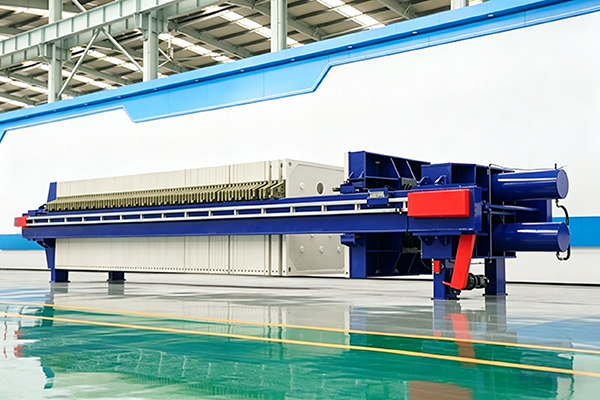

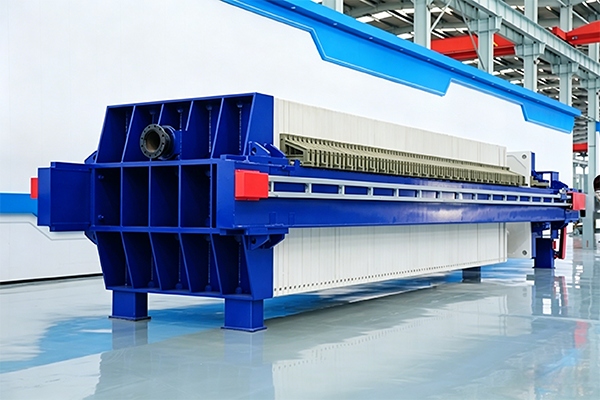

Recessed Chamber Filter Press Images
