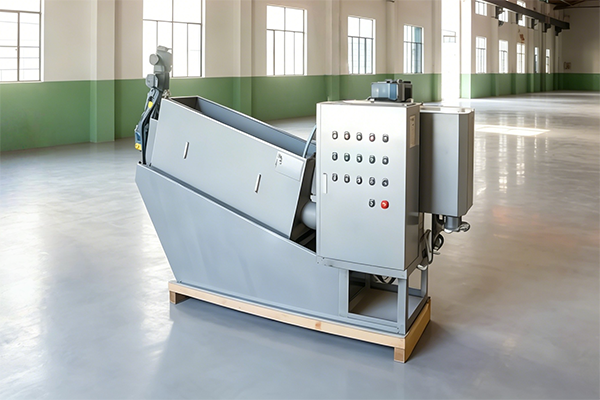

Volute Dewatering Press
Volute Dewatering Press is a highly efficient and versatile solid-liquid separation solution for sludge dewatering. It performs exceptionally well with high-oil sludge and suits municipal wastewater treatment as well as food & beverage, chemical, leather, papermaking, printing & dyeing and pharmaceutical applications. It runs fully automatically around the clock with little manual attention.
Volute Dewatering Press adopts low-speed screw pressing technology, delivering outstanding economy with low power and water consumption. It forms progressive pressure through a dual-gradient shaft and screw structure, while self-cleaning ring movement prevents clogging. This machine ensures stable performance, low maintenance and long service life in various dewatering scenarios.
Core Advantages
- Compact structure and small footprint, effectively saving installation space.
- Low-speed and low-energy operation with low water consumption, remarkably low operating cost.
- Self-cleaning and non-clogging performance ensures stable operation and less maintenance.
- Fully automatic continuous operation with high stability and reliability.
- Wide applicability for various sludge types with strong dewatering performance.
Design Features
- Non-Clogging Self-Cleaning
The relative movement between fixed and movable rings realizes continuous self-cleaning. The constant micro-gap prevents clogging efficiently with only small amounts of low-pressure washing water.
- Dual-Gradient Screw Design
The dual-gradient screw forms progressive pressure with reduced pitch and enlarged shaft diameter. It ensures stable and efficient dewatering performance for different kinds of sludge.
- Back Pressure Discharge System
The discharge baffle provides proper back pressure to compact sludge sufficiently. It greatly improves cake dryness and achieves ideal overall dewatering effect.
- Wear-Resistant Key Components
The screw blades adopt surface hardening treatment for strong wear resistance. It guarantees equipment precision and a long and reliable service life.

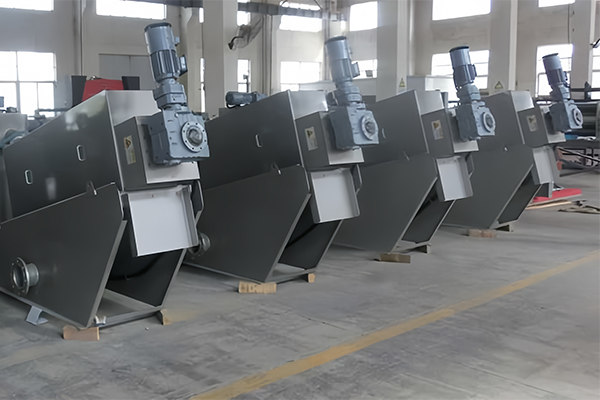

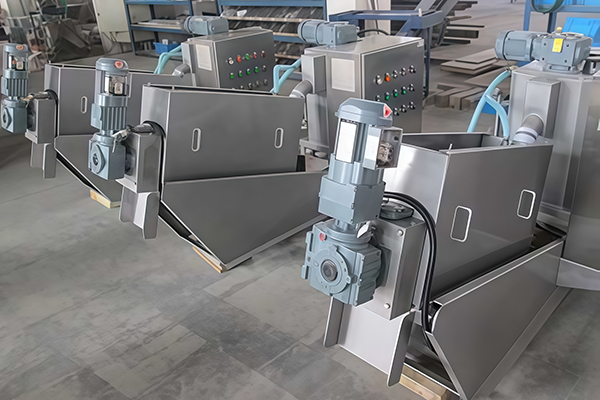

Volute Dewatering Press Images
Volute Dewatering Press Technical Specifications
| Volute Size (mm) | Volute Quantity | Dry solids Output (kg/h) | Shaft power (kW) | Floc. Mixer Power (kW) | Flushing water (L/h) |
|---|---|---|---|---|---|
| φ100 x 1150 | 1 | 5 - 7 | 0.18 | 0.18 | 24 |
| φ130 x 1150 | 1 | 10 - 14 | 0.18 | 0.18 | 24 |
| φ200 x 1570 | 1 | 15 - 20 | 0.37 | 0.18 | 32 |
| φ200 x 1570 | 2 | 30 - 40 | 0.37 x 2 | 0.55 | 64 |
| φ200 x 1570 | 3 | 45 - 60 | 0.37 x 3 | 0.55 | 96 |
| φ300 x 2270 | 1 | 50 - 70 | 0.75 | 0.55 | 40 |
| φ300 x 2270 | 2 | 100 - 140 | 0.75 x 2 | 0.75 | 80 |
| φ300 x 2270 | 3 | 150 - 210 | 0.75 x 3 | 1.1 | 120 |
| φ300 x 2270 | 4 | 200 - 280 | 0.75 x 4 | 1.1 | 160 |
| φ350 x 2800 | 1 | 100 - 120 | 1.1 | 0.75 | 70 |
| φ350 x 2800 | 2 | 200 - 240 | 1.1 x 2 | 1.1 | 140 |
| φ350 x 2800 | 3 | 300 - 360 | 1.1 x 3 | 1.1 | 210 |
| φ350 x 2800 | 4 | 400 - 480 | 1.1 x 4 | 1.1 x 2 | 280 |
| φ400 x 3600 | 1 | 130 -160 | 1.5 | 1.1 | 80 |
| φ400 x 3600 | 2 | 260 -320 | 1.5 x 2 | 1.1 | 160 |
| φ400 x 3600 | 3 | 270 - 450 | 1.5 x 3 | 1.1 x 2 | 240 |
| φ400 x 3600 | 4 | 390 - 480 | 1.5 x 4 | 1.1 x 2 | 320 |
Note: Specifications are provided for reference only. Actual parameters may vary based on model configuration, working conditions, and customization requirements.
For detailed, official, and application-specific technical specifications, please contact our sales team or engineers directly. Submit an inquiry now →
