Cartridge Filter Housing
The cartridge filter housing is a professional filtration equipment housing designed for high-precision fine filtration, which is widely used in pure water treatment, chemical fluid filtration, pharmaceutical intermediate purification, food and beverage filtration and other fields. It is mainly composed of a housing body, a filter cartridge seat, a top cover, a sealing gasket and a blowdown valve, and can be designed as a single-cartridge or multi-cartridge structure according to the processing capacity requirements.
The housing is made of high-quality stainless steel (304, 316L) or engineering plastic, which has good corrosion resistance and hygiene performance, meeting the filtration requirements of food, pharmaceutical and other industries. It is compatible with various types of filter cartridges, such as PP melt-blown filter cartridges, folded filter cartridges, activated carbon filter cartridges, and ceramic filter cartridges, with a filtration precision range of 0.1μm-100μm. The installation of the filter cartridge is simple and fast, and the top cover adopts a quick-opening design, which is convenient for replacing the filter cartridge. The internal structure of the housing is reasonable, ensuring that the fluid fully contacts the filter cartridge, improving the filtration efficiency and the utilization rate of the filter cartridge. The sealing performance is reliable, which effectively prevents the unfiltered fluid from mixing with the filtrate, ensuring the purity of the filtrate.
Core Advantages
- Multi-cartridge compatible, suitable for various types and specifications of filter cartridges.
- High filtration precision, capable of realizing fine filtration of 0.1μm-100μm.
- Easy installation and replacement of filter cartridges, reducing maintenance time and labor cost.
- Corrosion-resistant and hygienic materials, suitable for food, pharmaceutical and other high-standard industries.
- Reliable sealing performance, ensuring the purity of the filtrate.
Design Features
- Multi-Cartridge Structure Design
It can be designed as a single-cartridge, 2-cartridge, 4-cartridge, 6-cartridge and other multi-cartridge structures according to the processing capacity. The multi-cartridge design increases the filtration area, improves the processing capacity, and is convenient for alternate use and maintenance.
- Universal Filter Cartridge Seat
The filter cartridge seat adopts a universal design, which is compatible with filter cartridges of different specifications (such as 10-inch, 20-inch, 30-inch, 40-inch), and does not need to replace the filter cartridge seat when replacing different filter cartridges, reducing the replacement cost.
- Hygienic Design
The internal surface of the housing is polished (Ra≤0.8μm), which is smooth and free of dead corners, easy to clean and sterilize, meeting the hygienic requirements of food, pharmaceutical and other industries.
- Quick-Opening Top Cover
The top cover adopts a clamp type or bolt type quick-opening design, which can be opened quickly, and the filter cartridge can be replaced in a short time, improving the maintenance efficiency and ensuring the continuous operation of the production line.

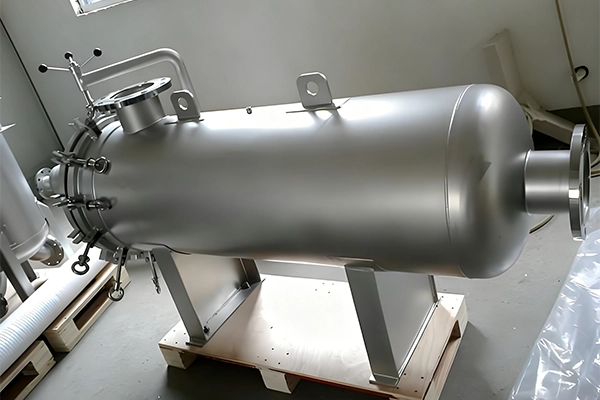

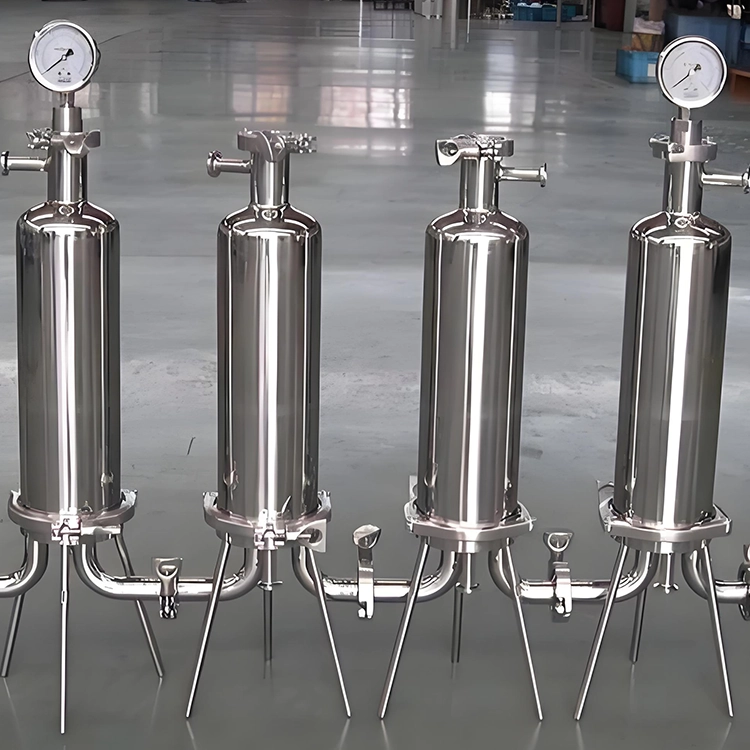

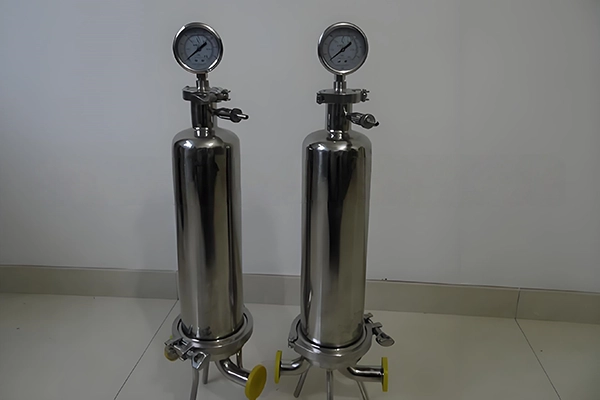

Cartridge Filter Housing Images
